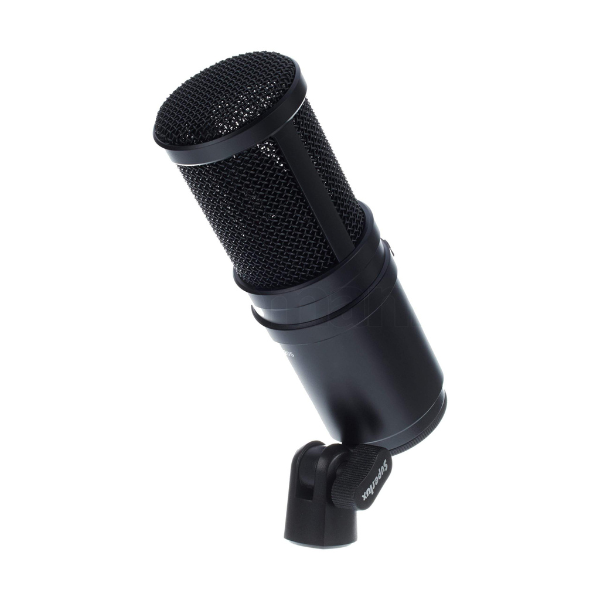

Superlux Studio Condenser Microphone E205

The Superlux Studio Condenser Microphone E205 is a high-performance microphone designed for professional studio applications. With its back electret condenser type and supercardioid polar pattern, it offers clear, accurate sound capture and focused directionality, ideal for capturing vocals, instruments, and other audio sources with minimal background noise.

Key Features and Specifications:

Type and Polar Pattern:

• The E205 features a back electret condenser capsule, known for its precise and detailed audio capture. This design provides excellent sensitivity and a broad frequency range, ensuring high-fidelity recordings.
• The supercardioid polar pattern offers directional sound capture, focusing on audio coming from directly in front of the microphone and rejecting noise from the sides and rear, making it ideal for use in studio environments or on stage.

Frequency Response:

• The E205 has a frequency response range of 30 Hz to 18,000 Hz, which ensures it captures both low-end rumblings and high-end details, offering natural, balanced sound reproduction.

Sensitivity and SPL:

• With a sensitivity of -38 dBV/Pa (12.6 mV), the microphone is highly responsive, picking up subtle nuances in sound, whether you’re recording soft vocals or detailed instrumentals.
• The maximum SPL of >135 dB SPL allows the E205 to handle very loud sound sources without distortion, making it suitable for both quiet and high-pressure environments such as loud instrument amplifiers and powerful vocal performances.

Impedance and Load:

• The output impedance is 200 Ω, which is compatible with most studio equipment, ensuring proper signal transmission and minimal signal loss.
• The minimum load impedance is 1,000 Ω, making the E205 adaptable to a variety of audio setups.

Noise and Dynamic Range:

• With an S/N ratio of >72 dB, the microphone ensures a clean recording with minimal unwanted noise.
• Its dynamic range of >113 dB enables it to capture subtle audio nuances while managing louder sound sources with ease, making it a versatile choice for studio professionals.

Power Requirements:

• The E205 operates on a 12-52V DC power supply, requiring 3.5 mA of current. This can be easily provided by most professional audio interfaces or mixing consoles that supply phantom power.

Design and Build:

• The E205 features a black finish, giving it a sleek, professional look that is perfect for any studio setup.
• The connector is an XLR3M, a standard connector used in professional microphones, ensuring a secure, reliable connection to audio interfaces or mixing boards.

Dimensions and Weight:

• The microphone’s dimensions are Ø54 × 150 mm (Ø2.13″ × 5.9″), making it compact enough for easy handling and positioning in various studio settings.
• It weighs 400 g (14.1 oz), providing a sturdy yet lightweight build that is durable for professional use without being cumbersome.

Applications:

• Studio Recording: With its broad frequency response and high SPL capabilities, the E205 is perfect for recording vocals, acoustic instruments, electric guitars, and drums, capturing every detail with clarity.
• Broadcasting & Voiceovers: The supercardioid pattern and low self-noise make this microphone ideal for radio broadcasts, podcasts, and voiceover work, providing professional-quality audio without interference from background noise.
• Live Sound & Stage Performances: With its ability to handle high SPL and focus on sound in front of the mic, the E205 can be used in live settings for capturing vocals or instruments with high accuracy, even in noisy environments.
• Professional Recording: Its low noise and wide dynamic range make it a great choice for professional studios, offering high-quality recordings for a range of musical and spoken-word applications.

Conclusion:

The Superlux Studio Condenser Microphone E205 is an excellent choice for musicians, audio engineers, and content creators who require high-quality sound capture with a supercardioid polar pattern for superior isolation. Offering a wide frequency response, high sensitivity, and a high SPL threshold, it is versatile and reliable for both studio and live applications. Whether you’re recording vocals, instruments, or voiceovers, the E205 delivers professional-grade audio reproduction, making it a valuable addition to any recording setup.
