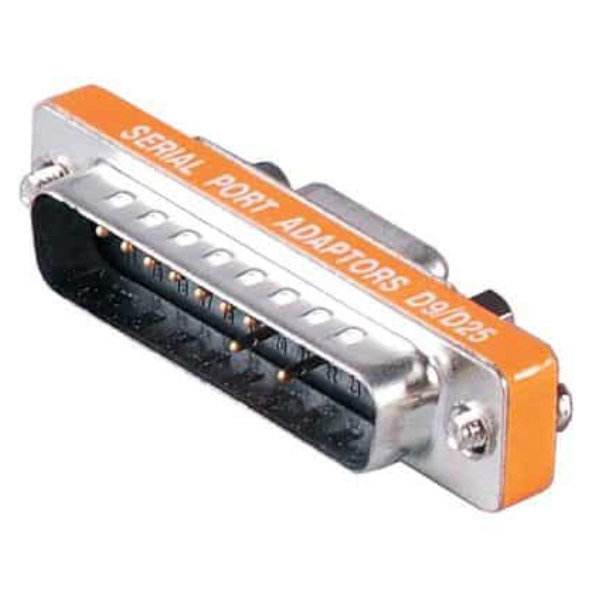

MX DB 9F To MX DB 25M Connector Compact Type MX-2204

MX DB 9F To MX DB 25M Connector Compact Type MX-2204

• At one side it has MX DB 9 pin female connector and at other side it has MX DB 25 pin male connector.
• MX DB contains two or more parallel rows of pins or sockets usually surrounded by a D-shaped metal shield that provides mechanical support.
• MX DB 9 pin female to MX DB 25 pin male adaptor will provide screening against electromagnetic interference, and ensures correct orientation.
• MX DB9 connector has 9 pins arranged in two rows, with one row on top of the other. The top row has 5 pins and the lower row has 4 pins.
• MX DB 25 socket connector has 25 pins arranged in two rows, with one row on top of the other. The top row has 13 pins and the lower row has 12 pins.
• MX DB 9 pin female to MX DB 25 pin male adaptor has thumbscrew on both sides for tight connection.
• MX DB 9 pin female to MX DB 25 pin male adaptor has full metal body.
• MX DB 9 pin female to MX DB 25 pin male adaptor is compact.
• MX DB 9 pin female to MX DB 25 pin male adaptor gives you flexibility in connection.
• MX DB 9 pin female to MX DB 25 pin male adaptor is easy to connect
