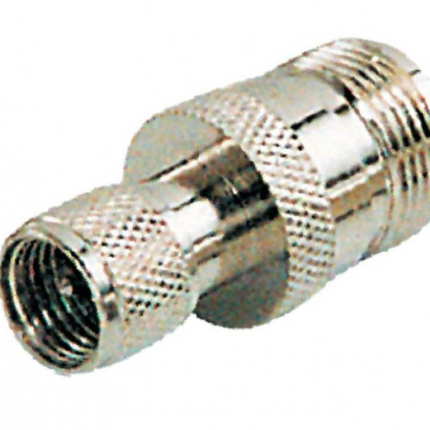

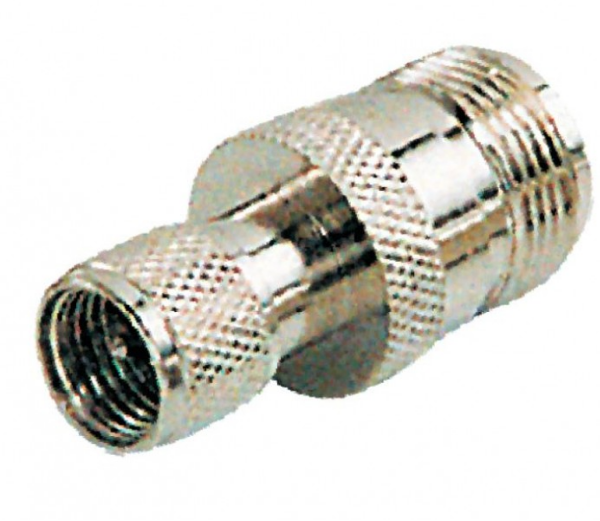

MX Mini UHF Male Plug To MX N Female Socket Connector MX-553

• MX MINI UHF Male to N type Female connector adaptor
• MX MINI UHF Male to N type Female connector adaptor pin is Gold Plated.
• MX N connector is used to join coaxial cables using a threaded RF connector.
• MX Mini UHF connector can have frequency response of the RF.
• Mini UHF connectors are used for RF signal Interconnection
• MX N type connector can easily handle signal up to 11 GHz.
• MX MINI UHF Male to N type Female connector adaptor has threaded coupling nut.

Applications:-

What are UHF & MINI UHF & their Applications.??

UHF stands for Ultra High Frequency. It is used UHF transmission is the physically short wave that is produced by the high frequency. It doesn’t refract or bounce off the ionosphere. They are designed for use as coaxial connections where size, weight, and cost factors are critical. Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C,

It is mainly used for broadcasting, TV, Radio transmission, Audio Video, Telecommunication, Antennas, Cable Assembly, Low Frequency equipment, PA Systems and CB radios. Etc.

Mini-UHF connectors are miniaturized versions of UHF connectors, designed primarily for use in mobile phones.

APPLICATIONS:

• Antennas
• Automotive
• Cable Assembly
• Cable Modems
• Cellular
• Components
• PC/LAN
• Telecom

What is N Connector and its Application?

N Connectors are a type of Radio Frequency or RF connectors used to join coaxial cables. N connectors are one of the first connectors that can carry microwave frequency signals. This connector is named after Paul Neill of Bell Labs who invented it in 1940s. Originally designed for up to 1 GHz signals, it can now handles up to 11 GHz. The male connector is hand tightened and has an air gap between the center and outer conductors.

APPLICATIONS:

• Antennas.
• Broadcast.
• Radar.
• Test.
• Measurements.
• LANs and Transmitters.
