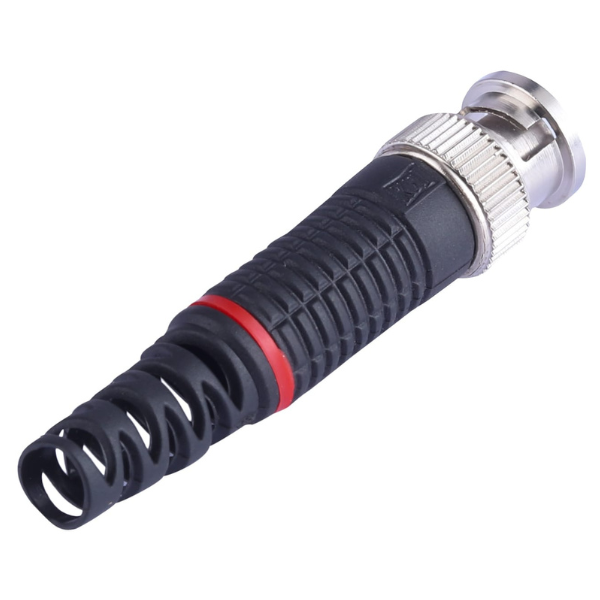

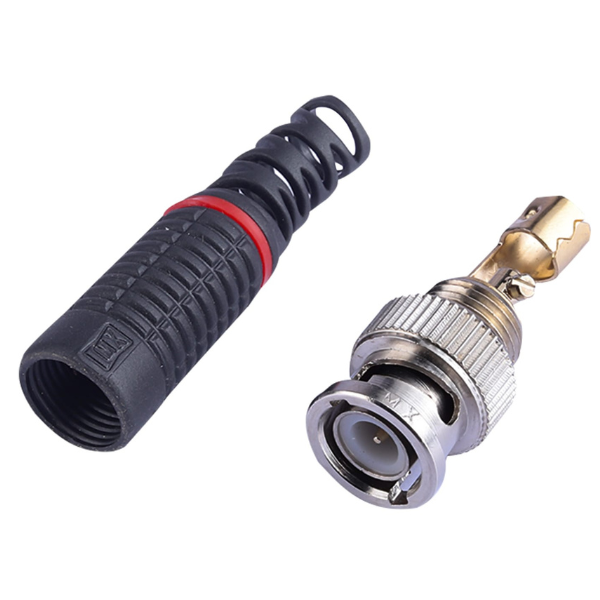

MX BNC Connector Super Deluxe (PIN GOLD PLATED) MX-158

The MX BNC Connector Super Deluxe (Pin Gold Plated) MX-158 is a high-performance, durable, and reliable connector designed for use in professional audio, video, and RF (radio frequency) applications. This BNC connector is engineered to provide secure connections, excellent signal quality, and long-lasting durability. Featuring a gold-plated pin, the MX-158 ensures superior conductivity, making it an ideal choice for applications requiring precise signal transmission. Whether you’re connecting audio/visual equipment, DVRs, or other electronic devices, the MX-158 offers a robust and efficient solution for coaxial cable connections.

Key Features and Specifications

1. MX BNC Connector: The MX-158 is a BNC (Bayonet Neill-Concelman) connector designed for use with coaxial cables. BNC connectors are widely used in audio, video, and RF signal connections. The MX-158 is specifically crafted to meet the needs of professionals requiring a secure and efficient connection for devices such as DVRs, cameras, and other AV equipment.
2. Used for RF and Video Signal Connections: This BNC connector is primarily used for RF signal connections, including analog and Serial Digital Interface (SDI) video signals. Whether you are transmitting high-quality video signals or working with radio frequency equipment, the MX-158 ensures stable and clear signal transfer, making it a go-to solution for professional broadcasting, surveillance systems, and audio-visual setups.
3. Pin Gold Plated for Superior Conductivity: The MX-158 features a gold-plated center pin, which provides exceptional conductivity and corrosion resistance. The gold plating minimizes signal loss and ensures a cleaner, more stable signal transmission. This feature is particularly beneficial in high-end video and audio applications where signal integrity is paramount. The gold-plated pins also contribute to the connector’s long lifespan by preventing oxidation, ensuring reliable connections over time.
4. Snug-Fit Center Pin Assembly: The connector features a snug-fit center pin assembly that offers tactile feedback when the plug is inserted. This ensures that the connector is securely engaged, providing a reliable connection that won’t easily come loose. The tactile feedback serves as an indicator that the connection is properly made, reducing the chances of signal interruption or loss due to improper insertion.
5. Excellent Cable Protection and Retention: The MX-158 is designed with outstanding cable protection and retention, ensuring that the coaxial cable stays securely in place even in environments where cables are frequently handled or moved. This feature is particularly important in situations like live broadcasts, where maintaining a stable, uninterrupted signal is crucial. The connector’s robust design also prevents wear and tear, offering long-term performance.
6. Precise Machined Brass Parts: The MX-158 is constructed from precisely machined brass parts, which contribute to its overall durability and resistance to mechanical stress. These brass components ensure the connector maintains its shape and performance, even after repeated use. The solid construction of the connector also protects it from external damage, making it suitable for both stationary and mobile setups.
7. Easy to Install: One of the key benefits of the MX-158 is its ease of installation. The connector is designed for simple and secure attachment to coaxial cables, allowing for quick setup and maintenance. The bayonet coupling mechanism makes it easy to twist and lock the connector into place, ensuring a firm, stable connection every time.

Applications

The MX BNC Connector Super Deluxe (Pin Gold Plated) MX-158 is ideal for a variety of applications, including:

• Audio-Visual Equipment: Perfect for connecting professional video equipment, cameras, DVRs, and other audio-visual devices that require secure BNC connections for analog or digital video signals.
• RF Signal Connections: Used extensively in radio frequency applications, including test equipment, networking, and telecommunications, where clear, high-quality signal transmission is necessary.
• Broadcasting and Surveillance: Commonly used in professional broadcasting environments, as well as surveillance systems where video and RF signals need to be transmitted reliably over long distances.
• Security Systems: Ideal for use in CCTV systems where secure, high-quality video connections are required to ensure clear footage transmission from cameras to recorders.

Conclusion

In conclusion, the MX BNC Connector Super Deluxe (Pin Gold Plated) MX-158 is a top-of-the-line choice for anyone seeking a durable, reliable, and high-performance connector for coaxial cables. Its gold-plated pin ensures superior signal transmission, while the precise machined brass construction guarantees exceptional durability and long-term performance. The snug-fit center pin assembly, tactile feedback, and easy installation make this connector an excellent option for audio, video, and RF applications. Whether you’re working in broadcasting, surveillance, or professional AV setups, the MX-158 offers a secure, high-quality connection that ensures stable, uninterrupted signal transmission.
