Mx Uhf Mini Female To N Male Connector Mx-916

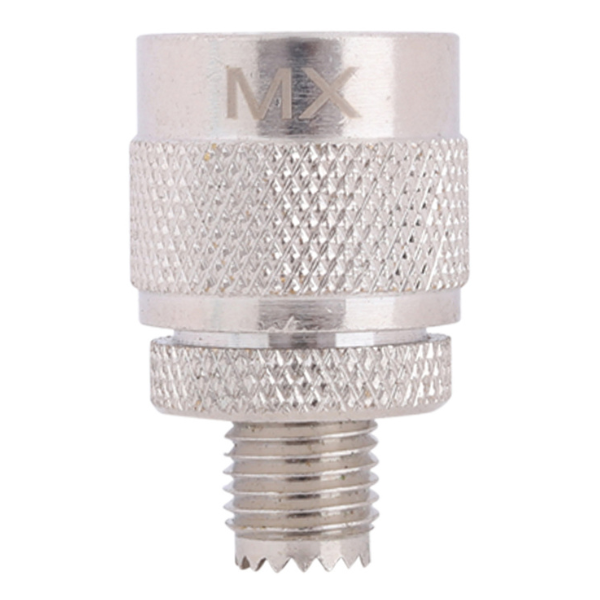

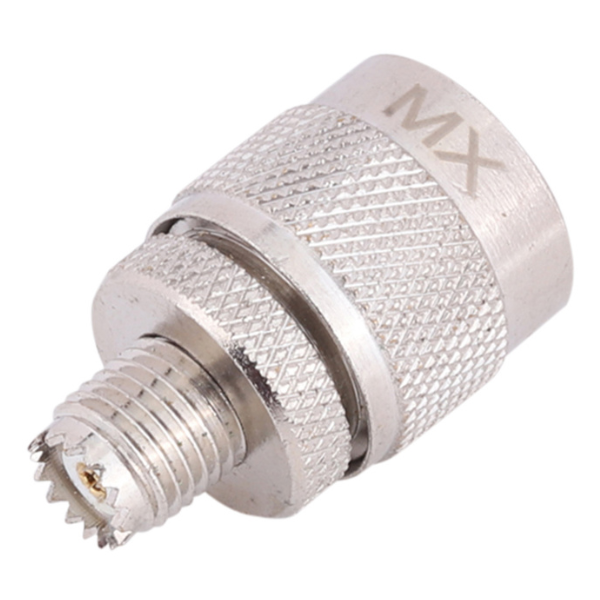

MX Mini UHF Female to N Male Connector – Model MX-916

The MX-916 Mini UHF Female to N Male Connector Adapter is a professional-grade solution designed for high-frequency RF signal interconnection. This adapter enables seamless connection between Mini UHF and N-Type interfaces, delivering exceptional performance in demanding RF applications. Built with gold-plated pins, threaded coupling, and robust construction, it ensures long-term signal reliability and minimal signal loss—even at frequencies up to 11 GHz.

Whether you’re setting up a communications network, working on a lab-based RF system, or connecting coaxial equipment in the field, the MX-916 delivers the quality and precision you need.

Mini UHF to N-Type – Bridging Legacy and Modern Systems

The MX-916 provides a reliable interface between Mini UHF Female and N-Type Male connectors, making it ideal for connecting legacy systems or adapting older coaxial cable types to modern RF infrastructure. This makes it a highly useful tool in telecommunications, broadcast, military, and RF test setups where multiple connector standards coexist.

High-Frequency Signal Handling – Up to 11 GHz

One of the standout features of the MX-916 is its ability to handle frequencies up to 11 GHz, significantly expanding its range of applications. Whether you’re transmitting RF, microwave, or high-speed data signals, this connector ensures low signal attenuation, minimal interference, and high performance across the spectrum.

This makes it especially suitable for:

• RF and microwave communication systems

• Wireless base stations

• Test and measurement equipment

• Satellite and GPS antennas

• Signal routing in lab and production environments

Gold-Plated Pins for Superior Conductivity and Corrosion Resistance

The gold-plated center pins are engineered to provide maximum electrical conductivity, ensuring clean signal transmission and long-lasting performance. Gold is highly resistant to corrosion and oxidation, making this connector an excellent choice for indoor and outdoor installations, even in harsh environmental conditions.

Threaded RF Coupling for Secure Connections

The MX-916 features a threaded coupling nut on the N-Type Male side and a secure Mini UHF Female interface, providing a tight and vibration-resistant connection. This threaded design prevents accidental disconnection, making the adapter suitable for use in mobile, aerospace, and industrial settings where equipment may be subject to movement or vibration.

Once connected, the threading keeps the interface stable and ensures signal continuity—critical for maintaining consistent performance in real-time communication systems.

Precision-Machined Build for Durability

Built from precision-machined metal, the MX-916 is designed to withstand regular handling, installation stress, and long-term usage. Its solid metal body ensures excellent shielding against electromagnetic interference (EMI), contributing to better signal integrity.

Despite its robust construction, the adapter remains compact, allowing it to be easily installed in tight or crowded setups such as control panels or RF enclosures.

Key Specifications:

• Model: MX-916

• Connector Type: Mini UHF Female to N-Type Male

• Contact Plating: Gold-plated center pins

• Material: Precision-machined metal for durability and EMI shielding

• Coupling Type: Threaded RF coupling nut (N-Type side)

• Frequency Handling: Supports up to 11 GHz

• Applications: RF signal routing, coaxial systems, wireless infrastructure, test equipment, satellite, and GPS communication

Why Choose the MX-916 Connector Adapter?

The MX Mini UHF Female to N Male Connector Adapter (MX-916) combines high-frequency handling, secure mechanical design, and top-tier signal performance in one compact, easy-to-install package. Whether you’re upgrading your infrastructure, running field diagnostics, or adapting legacy connectors in a broadcast system, the MX-916 ensures your signal connections are stable, clean, and built to last.

With its gold-plated pins, threaded coupling, and support for up to 11 GHz, it’s a trusted solution for engineers, technicians, and system integrators working across RF and coaxial applications.
